Raptor R-Car V4H High Performance AI SOM

System On Module (Automotive grade)

R-Car V4 series SoM

System On Module (Automotive grade)

R-Car V4H
som-1 som-2

Feature

  • Support Renesas R-Car V4H series Processor
  • 32 GB, compatible with eMMC specification 4.41, 4.51, 5.0, 5.1
  • 8GB DDR5 memory
  • GPU AXM-8-256 @ 600MHz, >150 GFLOPS
  • Automotive communicatioon: CAN、Ethernet AVB/TSN and FlexRay
  • PCIe Gen4 x 2
  • Computing power up to 34 tops
  • Target Applications: Automotive applications, HMI, Industrial areas

Product Specification

  • Main

    • Processor Four ARM Cortex A76 core 1.8GHz, Three ARM Cortex R52 core 1.4Ghz
    Memory LPDDR5 6400Mbps 8GB
    eMMC NAND Flash 32GB

  • I/O

    • Board to Board Pin Out Samtec board to board 500 pins.

  • Environment

    • Operating Temperature - 40°C ~ 85°C
    Humidity 10% - 85% Non-condensing

  • Dimension

    • Form Factor Customeized Form Factor (70 X 70 mm)

  • Board to Board Pin Out

    • Display DSI0
    DSI1    		 4 Lanes X1
    4 Lanes X1
    Audio SSI X1
    Connectivity CAN
    FlexRay
    MSIOF/SPI
    HSCIF/SCIF
    I2C
    PCIE
    GPIO    		 X8
    X2
    X6
    X4
    X6
    X2
    Multiple
    Camera CSI0
    CSI1    		 4 Lanes X1
    4 Lanes X1
    LAN AVB RGMII
    TSN RGMII     		X3
    X1
    System Control Power
    Reset_Enable Control    		 5V_VCC
    GPIO X1

  • OS

    • Linux Yocto Linux

  • SW Customization

    • Driver Customization is possible
    API Customization is possible
    Application Customization is possible

Accessory

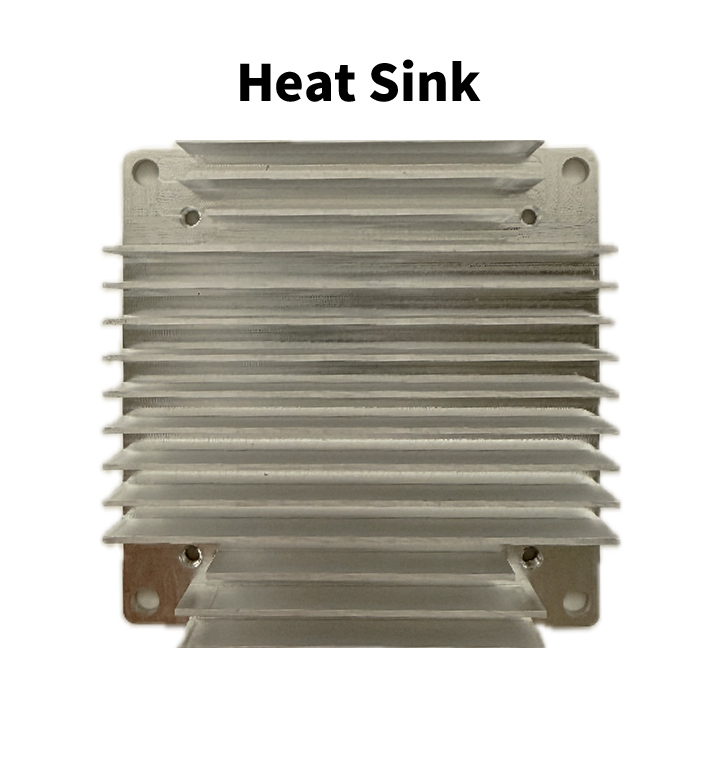

  • Heat Sink(Dimension 70 mm x 70 mm x 15mm), AL-6063
  • FAN(Dimension 60 mm x 60 mm x 15mm), 5V/0.2A
heatsink fan

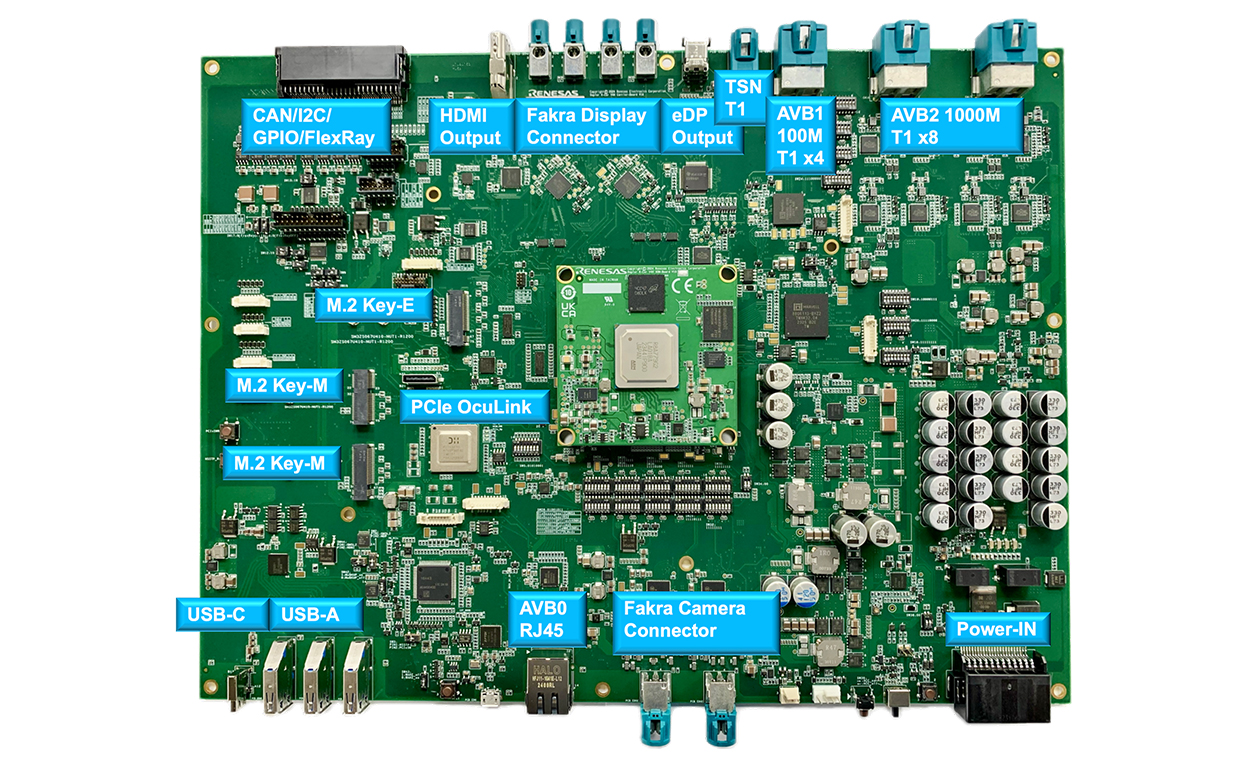

Standard Carrier Board

  • General I/O: CAN / I2C/ GPIO / FlexRay
  • Video Out: HDMI Output / GMSL Output / eDP output
  • LAN: TSN T1/ AVB
  • Video In: GMSL Input
  • Hi-Speed I/O: M.2 Key-E / M.2 Key-M / PCIe OcuLink
